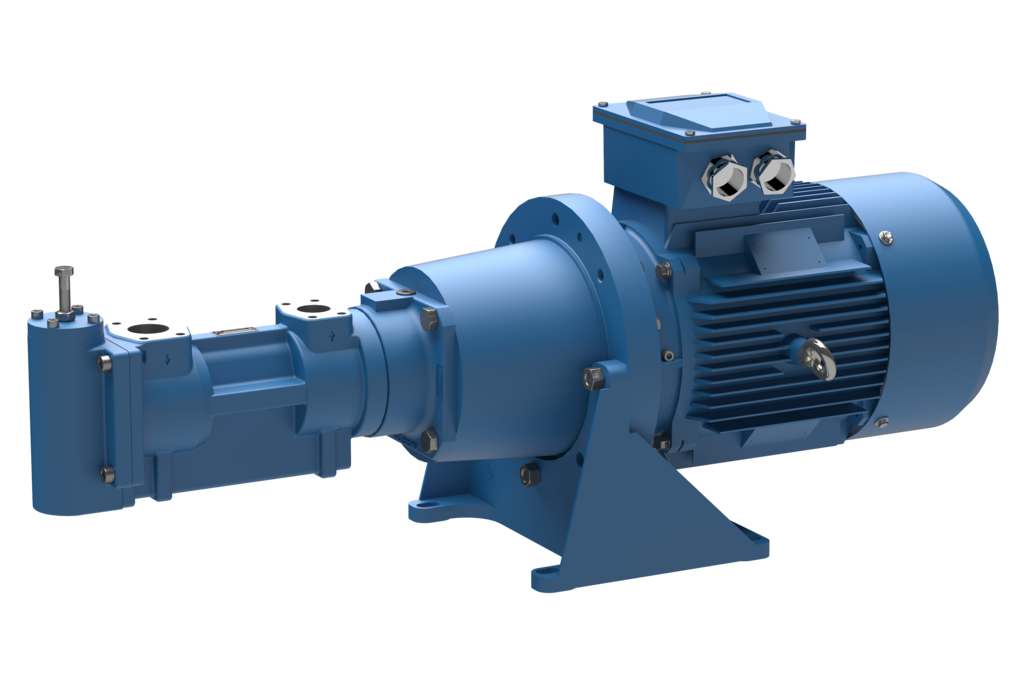

TRILUB® Series
Powering Smooth Lubrication and Hydraulics up to 16 Bar
Allweiler’s TRILUB® three-screw pumps are ideal for lubrication and hydraulic applications in engines, gearboxes, turbines or other machines at pressures up to 16 bar. The three-screw technology ensures smooth and low-pulsation pumping with extreme durability compared to other pump technologies. The special shape of the spindles creates sealed chambers that precisely direct the liquid flow from the suction to the discharge side. The TRILUB® pump series combines technical sophistication with practical accessibility, making it a pioneering solution for pumping lube and hydraulic oils.
Key Advantages
Consistent & Low Pulsation Pumping
With extreme durability and high efficiency
Proven Technology
Over decades optimized pump series optimized for the highest demands
Three-Screw Pumps
The Superior Pumping Technology
Discover our three-screw pumps – the clear choice for superior performance and versatility. The unique design with three interlocking spindles provides an extremely efficient and smooth flow, resulting in impressive overall efficiency.
In addition to excellent controllability, the self-priming pumps offer minimal pulsation and remarkably quiet operation, even at high discharge pressures.
Our three-screw pumps are true all-rounders, capable of handling a wide range of fluids of varying viscosities – from low-viscosity fluids to highly viscous substances. It’s robust design and the high wear resistance of the spindles ensure reliability and long life, making them the ideal choice for critical applications in a variety of industries.
Technical Details
TRILUB® Series
| Series | Max. Capacity [l/min] |
Max. Inlet Pressure [bar] |
Max. Outlet Pressure [bar] |
Max. Fluid Temperature [°C] |
Viscosity Range [mm²/s] |
|---|---|---|---|---|---|
| TRD | 35 | 7 | 7 | 90 | 1.4-1,500 |
| TRE | 130 | 7 | 16 | 80 | 1.4-3,500 |
| TRL | 880 | 3 | 16 | 80 | 3-760 |
| TRF | 2,400 | 5 | 16 | 130 | 1.4-1,500 |
| TRQ | 7,500 | 3 | 13 | 90 | 2-800 |
Let’s talk
Application Consulting For Your Needs
Finding the right pump takes expertise and careful consideration. Our team of experts is here to help you find and implement a customised solution for your application.
Our Service won’t stop after purchase
At CIRCOR we are committed to providing our customers with an excellent service experience based on safety, reliability and quality without compromise. Our team supports you with comprehensive advice, 24/7 support through our worldwide service network, on-board and factory maintenance and genuine spare parts on request. Our factory acceptance testing ensures the high quality of our products.
