ALLUB® RUV Series
Reliable Lubrication with High Performance

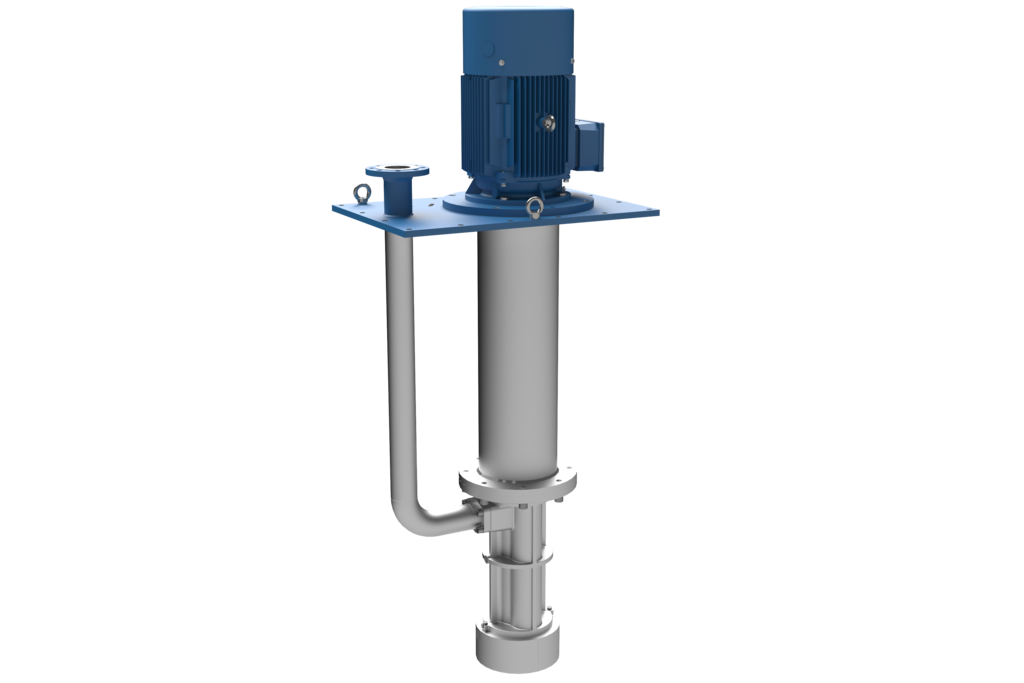

The RUV three-screw pump of the ALLUB® series is designed to provide consistent and reliable lubrication and hydraulic oil supply in industrial and power generation applications. The RUV’s unique features, such as hydraulically balanced spindles and virtually pulsation-free delivery, minimize wear and extend the life of your equipment. Media-lubricated bearings and the elimination of shaft seals ensure long-term, maintenance-free operation. Our ALLUB® RUV three-screw pumps offer a wide range of models and configurations to meet the specific needs of your lubrication or hydraulic oil system.
Key Advantages
Long-Term Maintenance-Free Operation
Due to media-lubricated bearing
and elimination of shaft seal
Customizable Installation Options
Vertical with suction piping, pump bracket
or shaft extension
Smooth, Low-Pulsation Pumping
With extreme durability
and high efficiency
Three-Screw Pumps
The Superior Pumping Technology
Discover our three-screw pumps – the clear choice for superior performance and versatility. The unique design with three interlocking spindles provides an extremely efficient and smooth flow, resulting in impressive overall efficiency.
In addition to excellent controllability, the self-priming pumps offer minimal pulsation and remarkably quiet operation, even at high discharge pressures.
Our three-screw pumps are true all-rounders, capable of handling a wide range of fluids of varying viscosities – from low-viscosity fluids to highly viscous substances. It’s robust design and the high wear resistance of the spindles ensure reliability and long life, making them the ideal choice for critical applications in a variety of industries.
Technical Details
ALLFUEL® Series
| Pump | Specifications | Max. Capacity [l/min] |
Max. Outlet Pressure [bar] |
Max. Fluid Temperature [°C] |
Viscosity Range [mm²/s] |
|---|---|---|---|---|---|
| RUV |
Tank installation Vertical |
1.300 | 16 | 100 | 3-760 |
| RUV-P |
Tank installation Vertical Intake manifold connection |
880 | 16 | 100 | 3-760 |
Let’s talk
Application Consulting For Your Needs
Finding the right pump takes expertise and careful consideration. Our team of experts is here to help you find and implement a customised solution for your application.
Our Service won’t stop after purchase
At CIRCOR we are committed to providing our customers with an excellent service experience based on safety, reliability and quality without compromise. Our team supports you with comprehensive advice, 24/7 support through our worldwide service network, on-board and factory maintenance and genuine spare parts on request. Our factory acceptance testing ensures the high quality of our products.
